FA611S
- 128 Low-noise MEMS Microphones Microphone Array
- 0 kHz to 65 kHz, Adjustable Range Bandwidth
- 10.1'' LCD, Touch Screen, 1920×1200 Display Screen
- 640×512@12μm Infrared Resolution

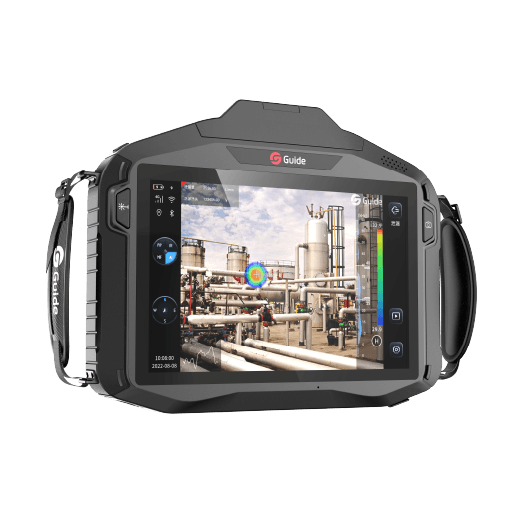

Overview
FA Series acoustic & thermal imaging camera deeply integrates acoustic imaging and thermal imaging technologies, offering efficient and detection solutions for industries. It is equipped with 128 high-precision microphones, 640×512 infrared detector, ultra-large 10.1-inch touchscreen, and the internal and external battery solution. FA Series is designed to quickly detect temperature anomalies, locate gas leaks and identify partial discharge, offering efficient detection solutions for industries such as power, manufacturing, and petrochemicals.

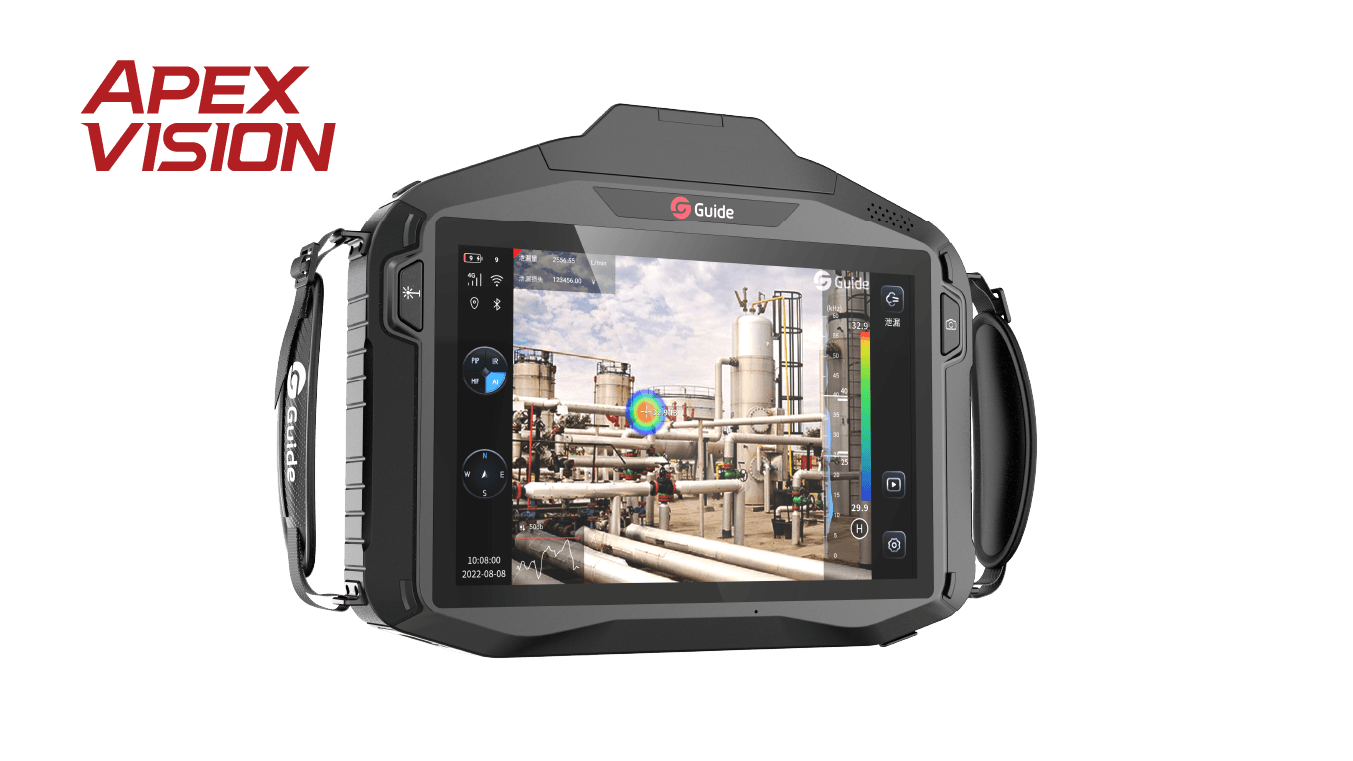

Complete ApexVision S1 System Architecture
Guide next-generation thermal imaging solution is engineered to elevate the infrared imaging performance
of temperature measurement devices at the system level. In any environment, it produces cleaner, finer images and delivers consistently accurate and reliable temperature data and analysis for critical decision-making.
of temperature measurement devices at the system level. In any environment, it produces cleaner, finer images and delivers consistently accurate and reliable temperature data and analysis for critical decision-making.

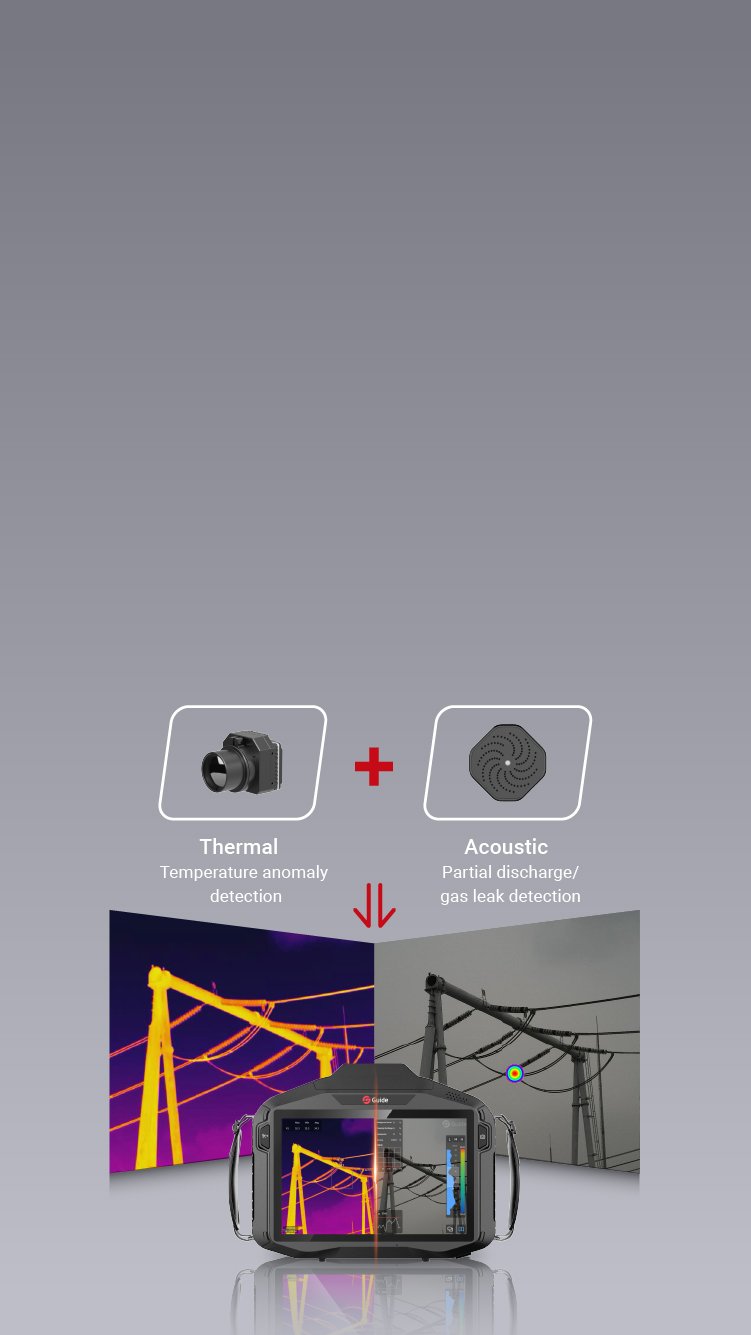

Acoustic & Thermal Imaging
Thermal（Temperature anomaly detection）+Acoustic（Partial discharge/ gas leak detection）

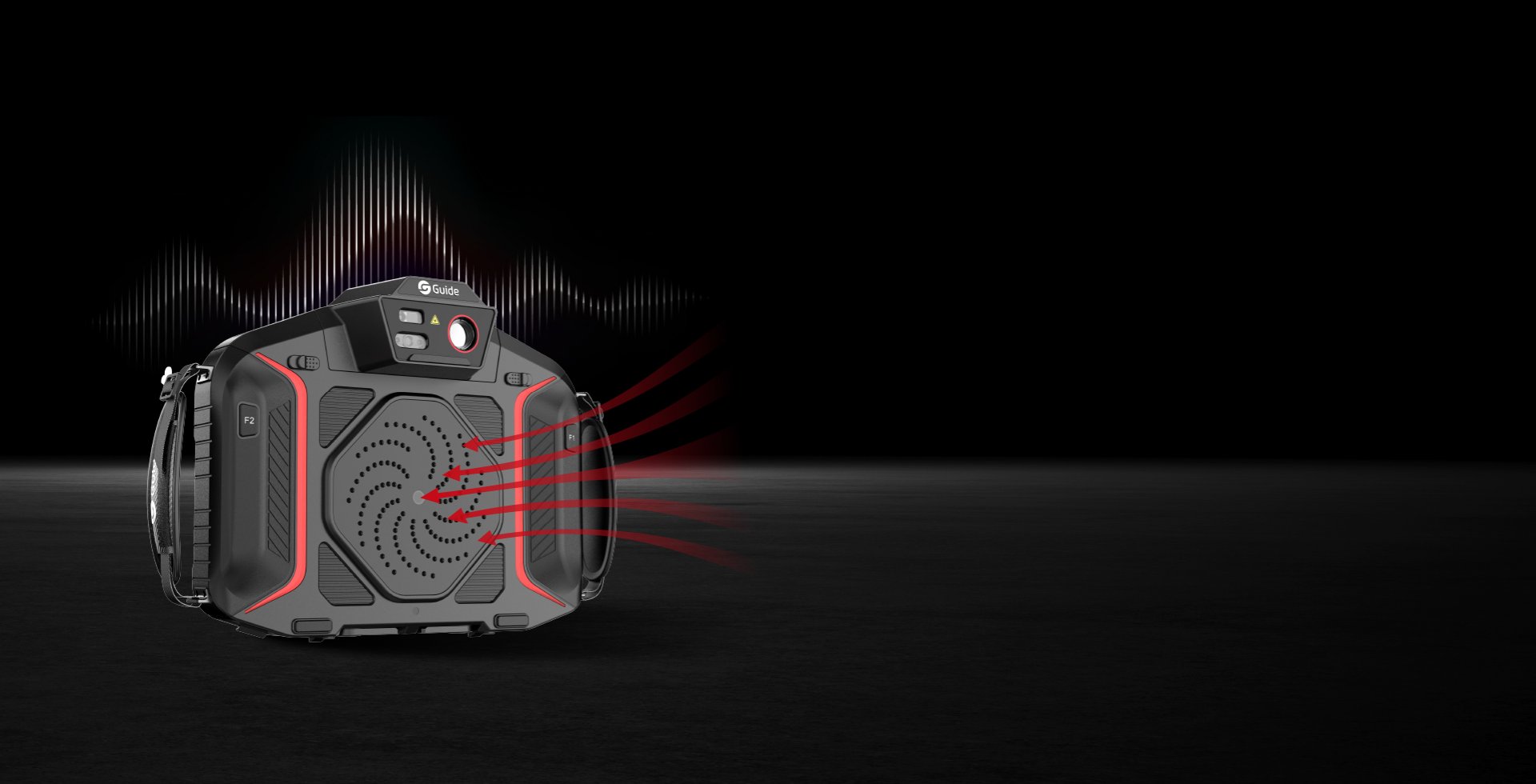

Acoustic Fault Localization
Equipped with 128 high-precision MEMS microphones in a spiral array, FA Series delivers highly sensitive acoustic detection, accurately capturing sound sources for precise detection of partial discharge and gas leak.
Abnormal Temperature Alarm
Equipped with a 640×512@12μm high-sensitivity infrared detector, FA Series responds quickly to temperature changes with high measurement accuracy. It can rapidly identify abnormal temperature areas and provide crystal-clear thermal imaging.
Modular Lens Design
FA Series utilizes an industry-first modular lens design that supports hot-swapping and multiple configurations. Users can easily replace application-specific modules, improving efficiency in inspection tasks.

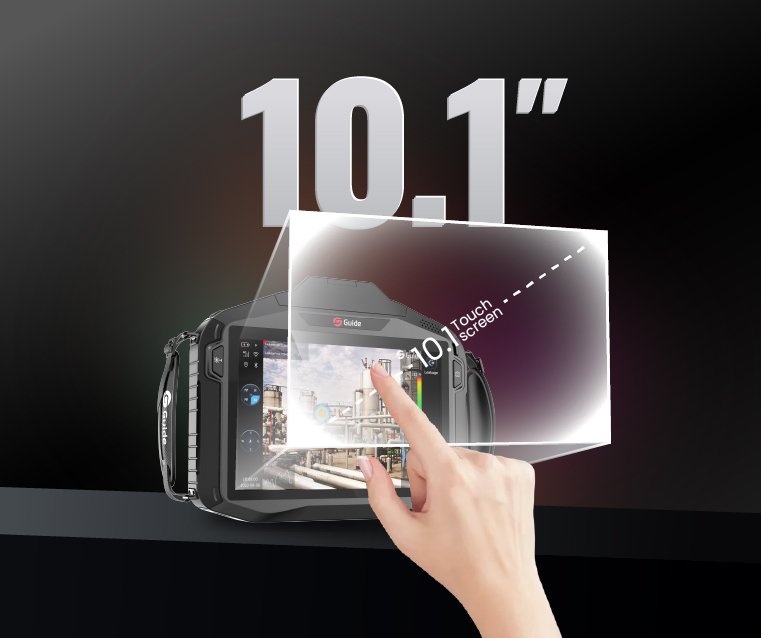

Ultra-Large Screen Visual Experience
Equipped with a 10.1-inch ultra-large touchscreen, it not only provides a broader visual experience but also makes touch-screen interaction more effortless and comfortable. It combines advantages such as low reflectivity, sensitive response, high durability, and resistance to accidental touches.
Specifications
| Specification | FA611S |
|---|---|
| Product Model |  |
| Image display | |
| Display screen | 10.1’’ LCD, touch screen, 1920×1200 |
| Image mode | AU, IR, MIF, PIP |
| Digital camera | 13MP |
| Digital zoom | 1.1x~20x |
| Functions | |
| Laser | Support laser indication, laser ranging range of 0.1m to 35m |
| Recording function | Photo and Video |
| Cloud Services | Available |
| OTA | Available |
| Storage and transmission | |
| Storage media | External SD card (128 GB and up to 256 GB) |
| Image storage | JPG with temp info |
| Video storage | MP4 format (without temp info) can be used to record audio synchronously; Irgd (with temp info), up to 30 Hz (optional) for temperature analysis |
| External interface | USB-C, SD card slot, Tripod socket |
| WIFI | Yes, it can be connected to the mobile terminal for image and real-time video transmission |
| Bluetooth | Bluetooth 5.0, support image transmission (only for Android) |
| Power system | |
| Battery type | Lithium-ion rechargeable battery |
| Operating time | Built-in battery + External battery: 5 hours |
| Environmental parameters | |
| Working temperature | -20°C to 50°C |
| IP rating | IP54 |
| Physical parameters | |
| Hardware | Wi-Fi, Illuminator, Microphone, Speaker, Electronic Compass, GPS |
| Weight | Acoustic Laser Rangefinder Version: 1.88kg; Acoustic Focus-free Thermal Version: 1.97kg; Acoustic Autofocus Thermal Version: 2.18kg |
| Size | 309×243.5×74mm/309×243.5×100mm |
| Software kit | PC: ThermoTools; Mobile:FocusIR (iOS/Android) |
| Package Contents | Device (acoustic, module optional), Customized Batteries ×2, Desktop Charger,Power Adapter with Plugs, USB-A to USB-C Cable, USB-C to USB-C Cable, Micro HDMI to HDMI Cable, RJ45 Ethernet Patch Cable, Docking Station, SD Card (128GB), Shoulder Strap, Hand Strap, Carrying Case, Safety Box, Quick Start Guide, Inspection Report, Calibration Certificate, Warranty Card |
| Optional Items | Tripod, Bluetooth Earphones, Optional module (Laser Rangefinder, Focus-free Thermal, Autofocus Thermal) |
| Acoustic Sensor | |
| Microphone array | 128 low-noise MEMS microphones |
| Bandwidth | 0 kHz to 65 kHz, Adjustable range |
| SPL range | 0~120 dB |
| Frame rate | 30 Hz |
| Detection mode | Partial Discharge / Gas Leak |
| Thermal Sensor (Thermal module required) | |
| Detector type | VOx, 7.5 to 14µm |
| Infrared resolution | 640×512@12µm |
| Super resolution | Yes, Upgrade to 1280×1024 |
| NETD | ≤15mK (@30°C) |
| Frame rate | 50Hz/9Hz |
| Focal length | 13mm/17.7mm |
| Measurement range | Support auto-switching: -40°C to 150°C, 0°C to 650°C |
| Measurement accuracy | ±2°C or ±2%, whichever is greater |
| Core technology | Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm SharpIR 2.0 |
