TU 3.0

Category: Thermal Scopes
SKU: TU 3.0
The TU 3.0 Series redefines precision optics with advanced thermal imaging, modular design, and AI powered performance. Offered in six sub-series—from ultra-light compact units to dual-spectrum, longrange solutions—they meet the demands of hunters, professionals, and tactical users alike. Featuring AI enhanced imaging, shutterless design, ergonomic controls, IP68 protection, and dual-band Wi-Fi, they deliver reliable performance in any environment.

Hyper-Light AlgorithmUltra-Premium Visuals

Powered by next-gen sensors and the Hyper-light algorithm, the product boosts image quality on multiple levels through improved clarity, reduced noise, optimized contrast, and enhanced resolution of fine details.

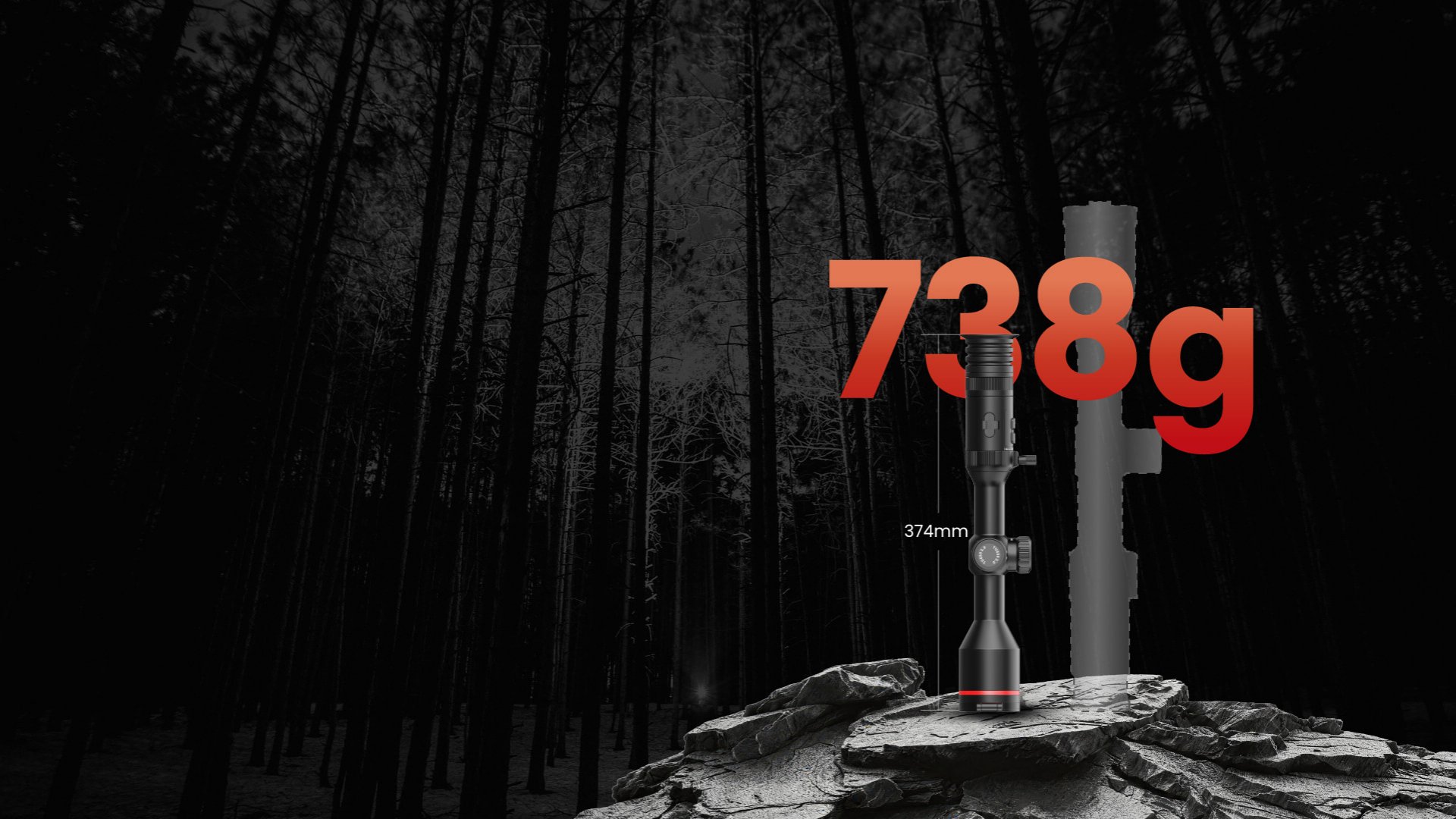

Lightweight DesignCompact Housing

Compared to the previous generation, TU 3.0 adopts a more compact and lightweight design, making it over 200g lighter than its predecessor with the same configuration. Its slim, metallic housing provides a comfortable grip.

Tailored for HuntersSeamless Control

After rounds of field testing, we evaluate the design features based on hunters'feedback, adjusting and refining them to meet user habits. The focus wheel, zoom lever and buton layouts are crafted with ergonomic detail for intuitive control.

Shutterless DesignUninterrupted Visuals

The innovative shutterless 3.0 technology eliminates the clicking sound and image freezing, ensuring uninterrupted real-time footage during actual hunts, in case any shots are lost or missed during calibration.

Rugged, DurableHigh Protection

Considering the harsh environment in the field, the scope must be sufficiently durable and sturdy. It features shock resistance up to 6000J to withstand recoil and an IP68 waterproof rating.

Dual Battery DesignStay Powered

A built-in battery and an external battery system offer strong power backup for extended hunting sessions of up to 14 hours. Moreover, the replaceable standard 18650 batteries support hot swapping, enabling virtually unlimited runtime.

Smart RecordingBest Moments Captured

The recoil-activated recording function automatically captures a 15-second video and 5 photos of each shot, with instant video playback, ensuring every breathtaking shot is saved.

Specifications

SpecificationTU435STU635STU650S
Product ModelTU435STU635STU650S
Sensor
Core technologyEquipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0
TypeUncooled VOx Infrared Detector, 8 to 14µmUncooled VOx Infrared Detector, 8 to 14µmUncooled VOx Infrared Detector, 8 to 14µm
Resolution400×300@12µm640×512@12µm640×512@12µm
NETD15mK15mK15mK
Frame rate50 Hz50 Hz50Hz
Lens
Objective lens35mm, F0.935mm, F0.950mm, F0.9
Field of View7.4°×4.4°11.8°×7.1°8.8°×7.0°
FOV m@100m13×821×1215×12
Magnification4.4x~17.6x2.8x~22.4x3.7x~29.6x
Detection range1800m/1950yd1800m/1950yd2600m/2800yd
FocusManualManualManual
Display
Display type0.49'' AMOLED 1920×10800.49'' AMOLED 1920×10801.03'' AMOLED 2560×2560
Color palettesWhite Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, SepiaWhite Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, SepiaWhite Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
EyepieceEye relief: 48mm; Diopter -5 to +5; Zoom: 14xEye relief: 48mm; Diopter -5 to +5; Zoom: 14xEye relief: 60mm; Diopter -5 to +5; Zoom: 7.8x
Hardware
Wi-Fi2.4G, 5G2.4G, 5G2.4G, 5G
InterfaceUSB-C (Charge/USB2.0)USB-C (Charge/USB2.0)USB-C (Charge/USB2.0)
Tube diameterStandard 30 mmStandard 30 mmStandard 30 mm
OthersMicrophone, BluetoothMicrophone, BluetoothMicrophone, Bluetooth
System
Recording functionPhoto/Video (Audio recording included)Photo/Video (Audio recording included)Photo/Video (Audio recording included)
Storage capacity128 GB128 GB256 GB
Power
Battery type18500 ×1 Battery (Built-in) and 18650 ×1 Battery (External)18500 ×1 Battery (Built-in) and 18650 ×1 Battery (External)18650 ×2 Battery (Built-in) and 18650 ×1 Battery (External)
Operating time8 hours8 hours14 hours
Environmental
Operating temp.-20°C to 50°C / -4°F to +122°F-20°C to 50°C / -4°F to +122°F-20°C to 50°C / -4°F to +122°F
Shock6000J6000J6000J
IP RatingIP68IP68IP68
Physical
Weight (g/oz)758/26.74758/26.74921/32.49
Size (mm/in)376×89×76/14.8×3.50×2.99376×89×76/14.8×3.50×2.99421×89×80/16.57×3.50×3.15

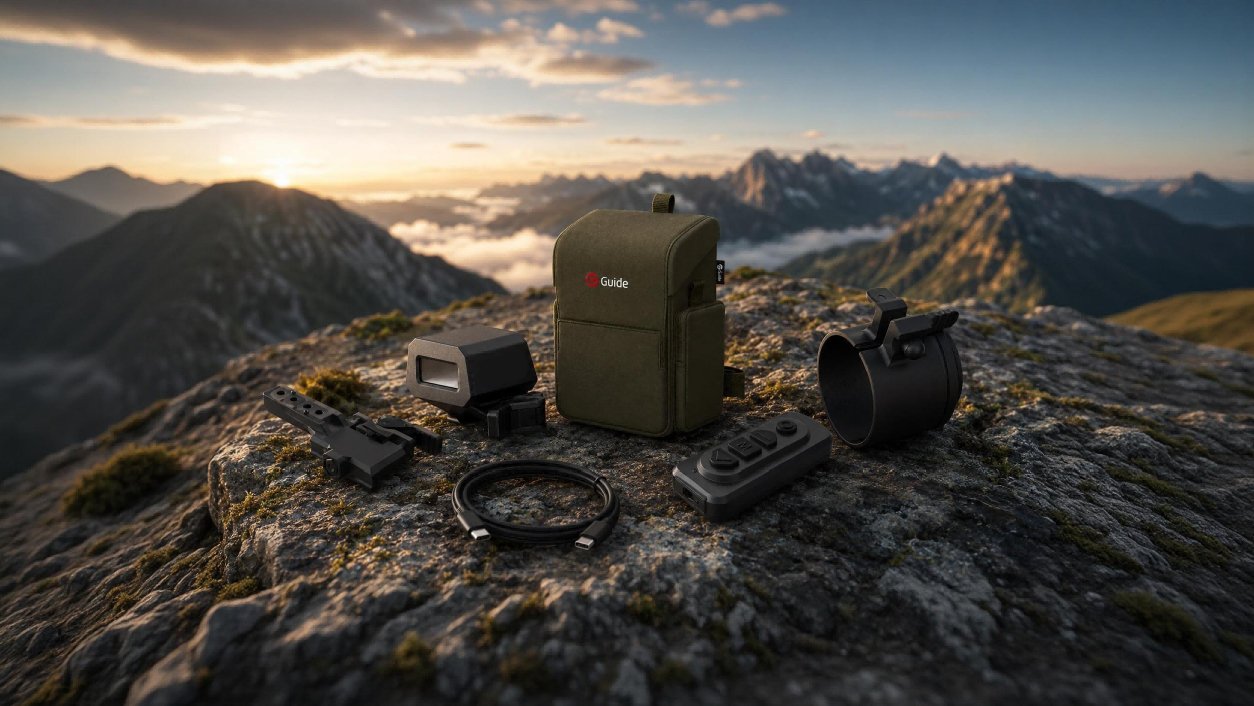

StandardDevice, Quick-Release Scope Mount, Carry Bag, Lint-Free Cloth, Battery Charger, 18650 Battery ×2, 5V 2A Adapter, USB-A to USB-C Cable, Quick Start Guide, Warranty CardDevice, Quick-Release Scope Mount, Carry Bag, Lint-Free Cloth, Battery Charger, 18650 Battery ×2, 5V 2A Adapter, USB-A to USB-C Cable, Quick Start Guide, Warranty CardDevice, Quick-Release Scope Mount, Carry Bag, Lint-Free Cloth, Battery Charger, 18650 Battery ×2, 5V 2A Adapter, USB-A to USB-C Cable, Quick Start Guide, Warranty Card
OptionalBluetooth Remote Control, 18650 Battery, 1200m Laser RangefinderBluetooth Remote Control, 18650 Battery, 1200m Laser RangefinderBluetooth Remote Control, 18650 Battery
