Rapid 6.4ms Super Megohm and Low Current Testing. 1 ch, 2000 V output.
- For highly stable measurements with strong noise resistance
- Built-in large-diameter triaxial connector to deliver maximum 2000 V output
- From high-volume production of 1600 units per minute to high-precision evaluation of semiconductors

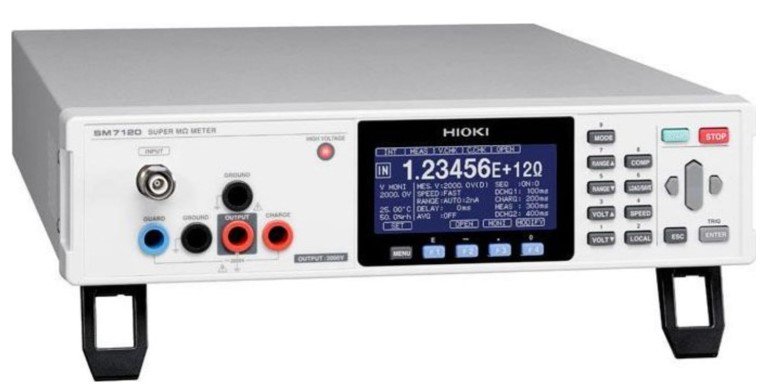

Hioki SM7120
- For highly stable measurements with strong noise resistance
- Built-in large-diameter triaxial connector to deliver maximum 2000 V output
- From high-volume production of 1600 units per minute to high-precision evaluation of semiconductors
Super Megohmmeter (Output Voltage 2000 V)
With a single instrument, you can measure protective semiconductor elements such as varistors, vehicle capacitors, and other high-voltage components.
Lowest threshold value setting of 0.1 pF
The super megohm meter allows you to perform reliable contact checks on low-capacity capacitors as well as on other measurement objects with small capacitance.
2-band selection
To prevent the check signals on a production line with multiple various measuring instruments from getting crossed, select the measurement frequency for contact checks.
Compatible with external power sources
The contact check function is also available when you use the instrument as an ammeter with an external power source. The instrument is also suitable for measurements over 2000 V.
Cable length correction function
To replace a cable, simply register the measur ing cable length. Time-consuming adjustments are no longer necessary and the instrument can be used for changing the line in a flexible manner.
In The Box
- (1) Power Cord
- (1) Male Connector for EXT I/O
- (1) Banana/Banana Cable (150mm (5.91 in))
- (1) Instruction Manual
Manuals/Guides
Brochures
- Hioki Super Megohm Meter Brochure
Manuals
- Hioki SM71xx Series Communications Manual
- Hioki SM71xx Series User Manual
Spec Sheets
- Hioki Super Megohm Meter Series Data Sheet
Application Notes
- Hioki Measuring the Surface Resistance of Industrial Materials
Manufacturer Specs
|
General Specifications (Accuracy guaranteed for 1 year; Post-adjustment accuracy guaranteed for 1 year) |
||
|
Applied voltage: |
SM7110: 0.1 V to 1000 V |
SM7120: 0.1 V to 2000 V |
|
Accuracy guarantee temperature and humidity range: |
23°C ±5°C (73°F ±9°F), 80% RH or less, warm-up: 30 minutes or longer |
|
|
Resistance display range: |
50 Ω to 2x10 19 Ω (19.9999 EΩ) |
|
|
Temperature measurement accuracy: |
Accuracy (display) range: -40°C to 80°C (-40°F to 176°F), measurement accuracy: ±0.5°C (±0.9°F) (with the Z2011 HUMIDITY SENSOR) |
|
|
Humidity measurement accuracy: |
Display range: 0.0% RH to 90.0% RH, accuracy range: 20.0% RH to 80.0% RH, measurement accuracy: ±5% RH (with the Z2011 HUMIDITY SENSOR) |
|
|
Display parameters: |
Resistance / current / surface resistivity / volume resistivity / measurement voltage |
|
|
External interface: |
EXT I/O, USB device (USB 2.0 Full-Speed), GP-IB , RS-232C |
|
|
Power supply: |
100 to 240 V AC, 50/60 Hz, 55 VA |
|
|
Dimensions and mass: |
330 mm (12.99 in) W x 80 mm (3.15 in) H x 400 mm (15.75 in) D (excluding protrusions), 6.7 kg (236.3 oz) |
|
|
Current Measurement Accuracy |
||||||
|
Range |
Maximum Display Value |
Resolution |
Current Measurement Accuracy (±% rdg. ±dgt.) |
|||
|
Fast |
Medium |
Slow |
Slow2 |
|||
|
20 pA |
19.9999 pA |
0.1 fA |
- |
- |
2.0+45 |
2.0+30 |
|
200 pA |
199.999 pA |
1 fA |
1.0+90 |
1.0+60 |
1.0+45 |
1.0+30 |
|
2 nA |
1.99999 nA |
10 fA |
0.5+60 |
0.5+40 |
0.5+30 |
0.5+20 |
|
20 nA |
19.9999 nA |
100 fA |
0.5+30 |
0.5+20 |
0.5+15 |
0.5+10 |
|
200 nA |
199.999 nA |
1 pA |
0.5+30 |
0.5+20 |
0.5+15 |
0.5+10 |
|
2 μA |
1.99999 μA |
10 pA |
0.5+30 |
0.5+20 |
0.5+15 |
0.5+10 |
|
20 μA |
19.9999 μA |
100 pA |
0.5+30 |
0.5+20 |
0.5+15 |
0.5+10 |
|
200 μA |
199.999 μA |
1 nA |
0.5+30 |
0.5+20 |
0.5+15 |
0.5+10 |
|
2 mA |
1.99999 mA |
10 nA |
0.5+30 |
- |
- |
- |
|
Voltage measurement accuracy (±% rdg. ±dgt.) |
|||
|
Range |
Maximum Display Value |
Resolution |
Voltage Measurement Accuracy |
|
10 V |
10.000 V |
0.001 V |
0.03+2 |
|
100 V |
100.00 V |
0.01 V |
0.03+2 |
|
1000 V |
1000.0 V |
0.1 V |
0.03+2 |
|
*2000 V |
2000.0 V |
0.1 V |
0.2+2 |
|
Measurement Time |
|||
|
Sampling Time (internal integration time) |
Power Supply Frequency |
||
|
50 Hz |
60 Hz |
||
|
Fast: |
2 ms |
6.7 ms |
6.7 ms |
|
Medium: |
1 PLC |
24 ms |
21 ms |
|
Slow: |
4 PLC |
100 ms |
84 ms |
|
Slow2: |
15 PLC |
320 ms |
320 ms |
*SM7120 only Take the withstand voltage of electrodes into account.
PLC: Power Line Cycle
Tech Specs
|
Micro / Milli / Meg Ohmmeters/Megohmmeter / Insulation Resistance Testers Template |
|
|
IR Test Voltage |
1,000 V, 10 V, 100 V, 125V, 2,000 V, 250 V, 25V, 400V, 50 V, 500 V |
|
Automated Test Results |
Leakage Current |
|
Type |
Line |
|
Variable Incremental Voltage |
Yes |
|
Continuity Test |
Yes |
|
Live Circuit Voltage Detection |
Yes |
|
Power Supply |
Line Powered |
|
Test Equipment General Attributes |
|
|
Unique Features |
0-2000V in 0.1 volt steps 2X10 to 19 ohms |
|
Interfaces I/O |
Analog Output, GPIB, RS-232, USB |
|
Country of Origin |
Japan |
