Achieve Precision and Comprehensive Data Logging with a Multi-Function Anemometer

The Anemometer provides accurate and reliable measurements for air velocity, air flow, and temperature with real-time data logging capabilities, making it an essential tool for various industrial and environmental applications.

Exceptional Features:

1. Multi-Mode Measurement: Measures air velocity, air flow (CMM, CFM), and air temperature, providing comprehensive monitoring capabilities with multiple units of measurement.

2. Real-Time Data Logging: Built-in SD card real-time data recorder with adjustable sampling times from 1 to 3600 seconds, storing measurement data along with timestamp information for detailed analysis.

3. Large LCD Display: Features a super large dual display LCD with green backlight for easy reading of air velocity, air flow, and temperature values simultaneously.

4. Type K/J Thermocouple Thermometer: Offers Type K and Type J thermocouple input for wide-range temperature measurements.

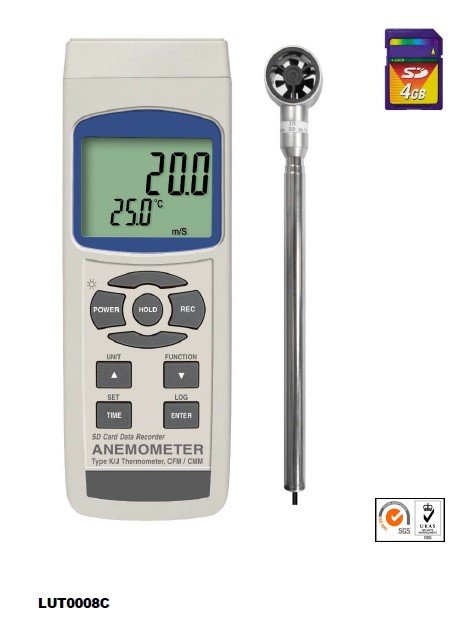

5. Durable and User-Friendly Design: Includes a mini vane anemometer with a 35 mm diameter, low-friction ball bearing mounted wheel, and a telescope probe with an extension length up to 620 mm for easy operation in various environments.

Technical Specifications:

- Display:

  - Type: Large dual function LCD

  - Size: 52 mm x 38 mm

  - Backlight: Green backlight (ON/OFF)

- Measurement Modes:

  - Air Velocity:

    - Units: m/s, km/h, ft/min, knots, mile/h

    - Range:

      - m/s: 0.4 to 20.0 m/s (Resolution: 0.1 m/s, Accuracy: ±(5% + 0.1 m/s))

      - km/h: 1.4 to 72.0 km/h (Resolution: 0.1 km/h, Accuracy: ±(5% + 0.3 km/h))

      - mile/h: 0.9 to 44.7 mile/h (Resolution: 0.1 mile/h, Accuracy: ±(5% + 0.2 mile/h))

      - knots: 0.8 to 38.8 knots (Resolution: 0.1 knots, Accuracy: ±(5% + 0.2 knots))

      - ft/min: 78 to 3940 ft/min (Resolution: 1 ft/min, Accuracy: ±(5% + 20 ft/min))

  - Air Flow:

    - Units: CMM (m³/min), CFM (ft³/min)

    - Range:

      - CMM: 0 to 54,000 m³/min (Resolution: 0.001 to 1 m³/min)

      - CFM: 0 to 1,907,000 ft³/min (Resolution: 0.001 to 100 ft³/min)

    - Measurement Area:

      - CMM: 0.001 to 30.000 m²

      - CFM: 0.01 to 322.93 ft²

  - Air Temperature:

    - Units: ℃, ℉

    - Range: 0 to 50℃ (Resolution: 0.1℃, Accuracy: ±0.8℃), 32 to 122℉ (Resolution: 0.1℉, Accuracy: ±1.5℉)

- Type K/J Thermocouple Thermometer:

  - Type K:

    - Range: -50.0 to 1300.0℃ (Resolution: 0.1℃, Accuracy: ±(0.4% + 0.5℃))

    - Range: -58.0 to 2372.0℉ (Resolution: 0.1℉, Accuracy: ±(0.4% + 1℉))

  - Type J:

    - Range: -50.0 to 1200.0℃ (Resolution: 0.1℃, Accuracy: ±(0.4% + 0.5℃))

    - Range: -58.0 to 2192.0℉ (Resolution: 0.1℉, Accuracy: ±(0.4% + 1℉))

- Power Supply:

  - Battery: 6 x 1.5V AA (UM3) batteries or DC 9V adapter input

  - Power Consumption: Approx. DC 30 mA (normal operation), Approx. DC 50 mA (SD card saving data)

- Operating Environment:

  - Temperature: 0 to 50℃

  - Humidity: Less than 80% RH

- Dimensions:

  - Main Instrument: 177.5 x 68 x 45 mm (7.0 x 2.7 x 1.8 inches)

  - Anemometer Sensor Probe: Round, 35 mm Dia.

- Weight: 347 g (0.76 lb)

Accessories Included:

- Instruction Manual: 1 PC

- Anemometer Probe: 1 PC

- Soft Carrying Case (CA-05B): 1 PC

Optional Accessories:

- SD Card (4 GB)

- Replacement Anemometer Van Set

- Type K Thermocouple Probes

- AC to DC 9V Adapter

- USB Cable (USB-01)

- RS232 Cable (UPCB-02)

- Data Acquisition Software (SW-E816)

- Excel Data Acquisition Software (SW-E802)

Advanced Features:

- Microcomputer Circuit: Ensures high accuracy and provides special functions and features.

- Real-Time Data Output: Via RS232/USB interfaces for seamless integration with data acquisition systems.

- Patented Design: Recognized for its innovative and reliable design.

- Automatic Temperature Compensation: For Type K/J thermometers, ensuring accurate readings across a wide temperature range.

- Data Hold Function: Freezes the display reading for convenient data recording.

- Memory Recall: Stores maximum and minimum readings for easy recall.

Invest in the AM-4233SD Anemometer for precise and reliable air velocity, air flow, and temperature measurements, ensuring high performance and versatility in various industrial and environmental applications.
