Description

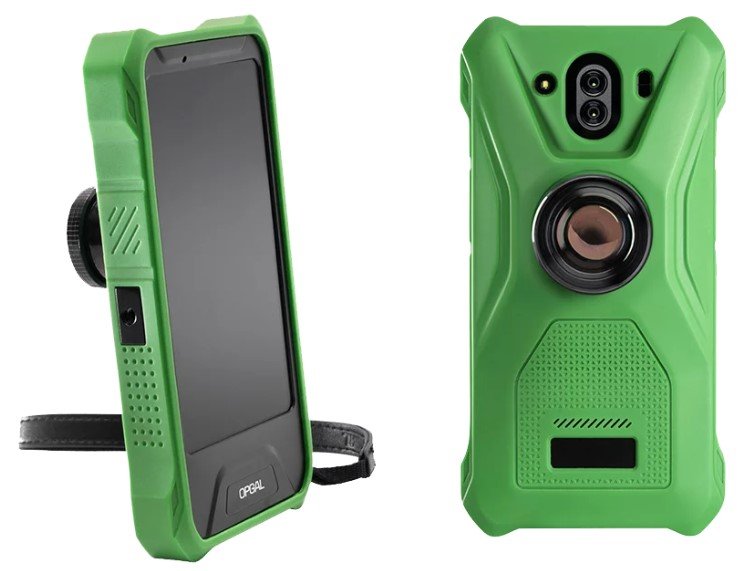

EyeCGas® Mini is a compact, handheld and user-friendly uncooled OGI camera for gas leak detection. The Mini comes in multiple models, which, using different kind of filters, can detect Methane, SF6, Ammonia, HFC Refrigerants and more.
Feature-rich, this small handheld camera allows wireless communication, data streaming, image fusion, thermography, video & audio recordings, and more. Compact and durable, the EyeCGas Mini revolutionizes the way inspections are held.
Specifications
| Image and Optical Data | |
|---|---|
| Sensor Resolution | 384 x 288 |
| Focal Plane Array | Uncooled Microbolometer |
| Spectral Range | 7.5 – 9 µm |
| Detector Pitch | 17µ |
| Thermal Sensitivity | <50mK @ 25 °C |
| Gas Sensitivity | >10 gr/hr (Methane) |
| Field of View | 19° x 14° Manual Focus |
| Focal Length | 20mm |
| F# | 1.0 |
| Digital Zoom | Included |
| Image Presentation and Framerate | |
|---|---|
| Image Frequency | 9 Hz IR, 30Hz Visible |
| Display | OLED, 6 Inch, 1080×2160 pixels, 16 M Colors, Touch-screen |
| Visible Digital Camera | 12MP |
| IR Color Palettes | Hot White / Hot Black / Iron / Rainbow / Grey / Vivid |
| Image Mode | Fusion |
| Video Streaming | TBA |
| Image Format | BMP, AVI |
| General | |
|---|---|
| Thermography | 10 – 85 °C |
| Accuracy | ± 3°C |
| Data Stotage | 128 GB |
| Interface | Bluetooth, Wi-Fi |
| GPS | Included |
| Size (mm) | 180 x 80 x 60 |
| Weight | 600 gr |
| Operating Time | > 5 hours |
| Charging | Standard USB C port |
Why EyeCGas?
EyeCGas® Mini is a compact, handheld and user-friendly uncooled OGI camera for gas leak detection. The Mini comes in multiple models, which, using different kind of filters, can detect Methane, SF6, Ammonia, HFC Refrigerants and more.
Feature-rich, this small handheld camera allows wireless communication, data streaming, image fusion, thermography, video & audio recordings, and more. Compact and durable, the EyeCGas Mini revolutionizes the way inspections are held.
Simple to Operate
Simple and easy operation with minimal training
