TCTempX4 — 902169-00 MAD0041B02 (4ch)
TCTempX8 — 902171-00 MAD0041(8ch)
TCTempX12 — 902177-00 MAD0041B03(12ch)
TCTempX16 — 902178-00 MAD0041B04(16ch)
MAD0041A01- U9VL-J PN 901804-00 REPLACEMENT BATTERY FOR TCTEMPX SERIES

The TCTempX Series includes 4, 8, 12, and 16-channel thermocouple-based temperature data loggers. Includes ISO17025 accredited calibration certificate.

Key Features:

• • Accepts a Variety of Thermocouples
  • Large Memory Capacity
  • Individual Cold Junction Compensation

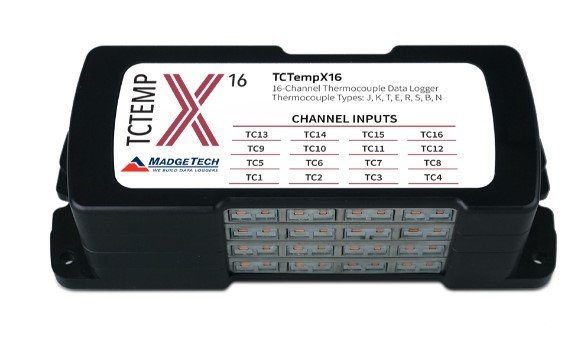

The TCTempX Series includes the TCTempX4, TCTempX8, TCTempX12 and TCTempX16 thermocouple-based temperature data loggers with a reading rate of up to 4 Hz, ideal for a variety of applications, whether it is remote temperature monitoring or multiple points in a central location.

In addition to having a large memory capacity, the TCTempX allows users to disable channels to further maximize memory capacity. For easy identification, each channel can be named with up to a ten-digit title.

In addition, the TCTempX Series features individual cold junction compensation for each channel providing increased accuracy and response time, and if a probe is removed or severed during logging, the software automatically annotates the data.

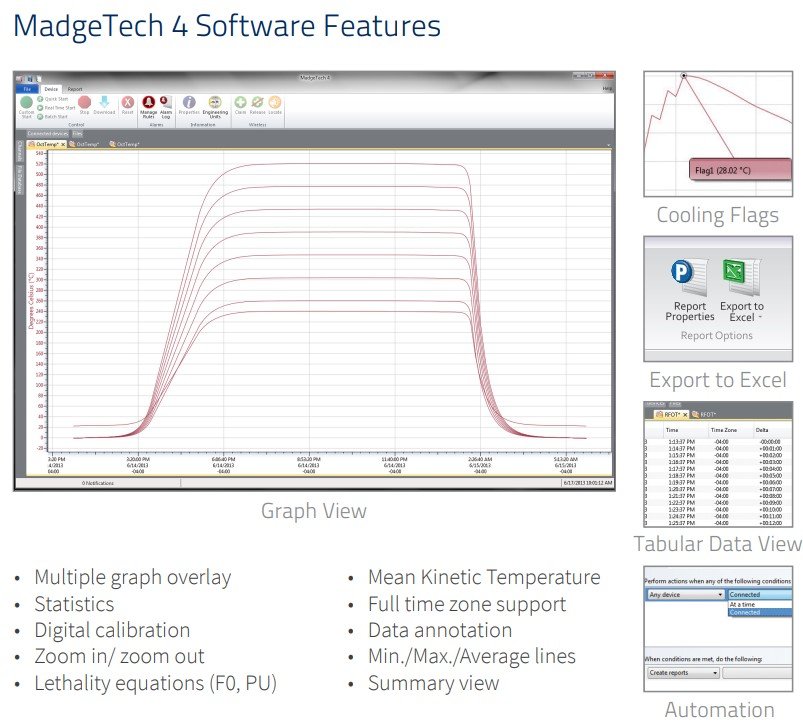

The TCTempX Series is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

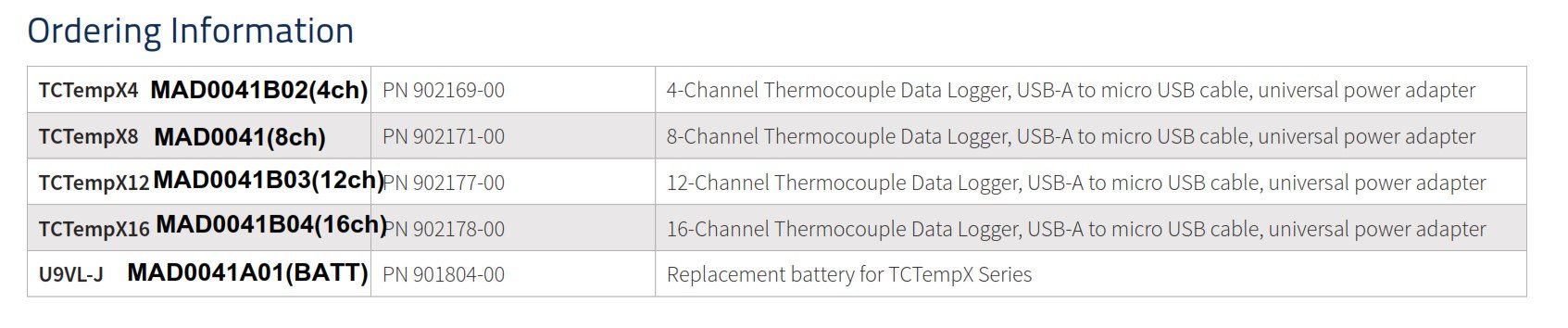

TCTempX4 — 902169-00 MAD0041B02 (4ch)
TCTempX8 — 902171-00 MAD0041(8ch)
TCTempX12 — 902177-00 MAD0041B03(12ch)
TCTempX16 — 902178-00 MAD0041B04(16ch)

MAD0041A01- U9VL-J PN 901804-00 REPLACEMENT BATTERY FOR TCTEMPX SERIES

The TCTempX Series replaces the following:
OctTCTemp2000V2 — 902090-00
OctTemp — 900423-00
QuadTCTemp2000V2 — 902089-00
QuadTemp — 901336-00
