Intelligent Shipment Visibility for Extended Trips

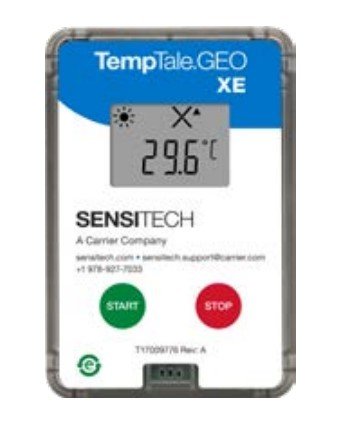

The TempTale® GEO XE enables global, real-time shipment location tracking with validated, GxP-compliant temperature
monitoring for longer trips. Tailored for life sciences, the TempTale GEO XE solution proactively notifies logistics and partners,
providing in-transit visibility and alerts, speeding product release by automating data sent to the cloud.
The TempTale GEO XE solution adds intelligent visibility to your shipments. It enables validated, GxP-compliant shipment accept/
reject decisions. Built-in battery management simplifies device management. The solution provides crucial insights into what
occurred during shipment to support root cause analysis.

Key Features and Benefits
• Small IoT device fits most packaging
• Arrives fully charged and ready to use—no worries about
device battery life
• Immediate, real-time temperature, light, humidity, and
location notifications, with option to add control tower
escalation services
• Optimized for extended trips up to 120 days
• Supports frozen shipment monitoring to -30°C
• Communicates as frequently as every 15 minutes and
immediately upon alarm
• Global cellular communication coverage with added Wi-Fi
locates for precise proof of delivery
• Remotely configure your own alarms and trip length from
Sensitech’s software
• Lithium metal battery (no IATA dangerous goods declaration
if < 3 devices in consignment)
• Up to 6 hardware alarms and up to 12 software alarms
to speed product release

• Each device is individually 3-point NIST calibrated before
every use, with a Certificate of Calibration
• Failsafe, secondary download with Bluetooth and the
TempTale App

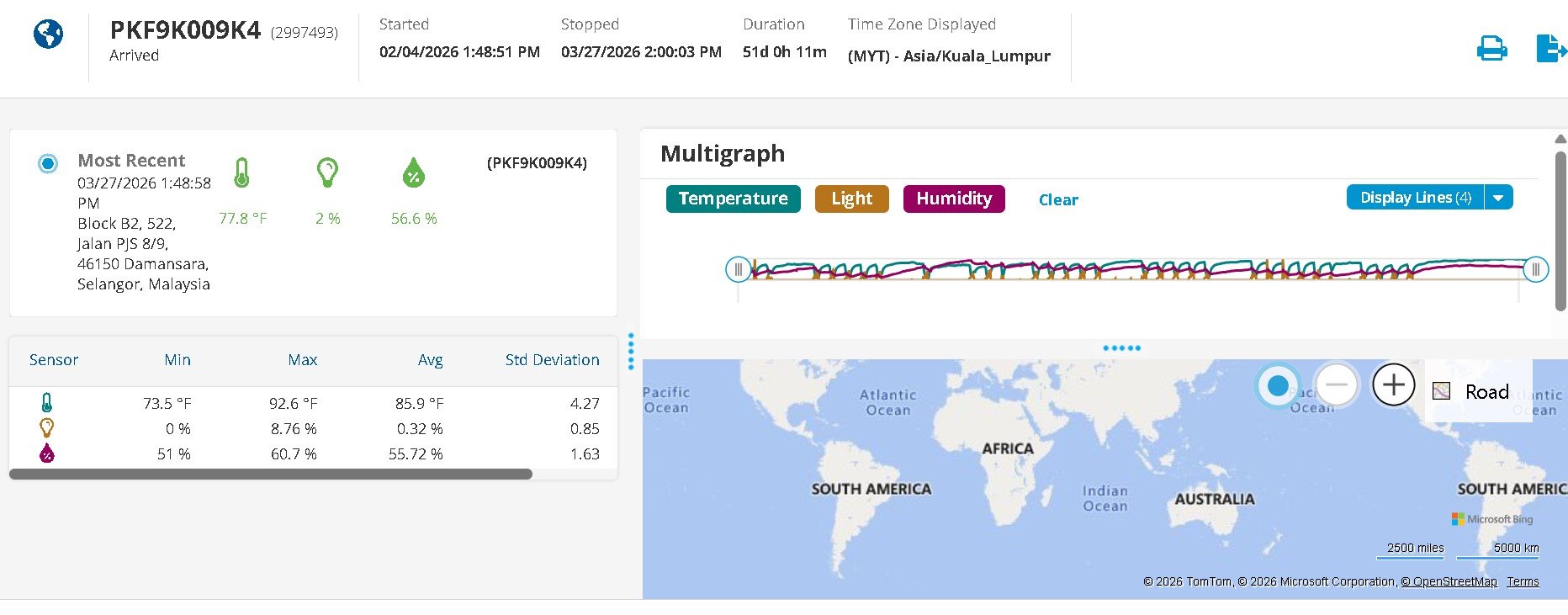

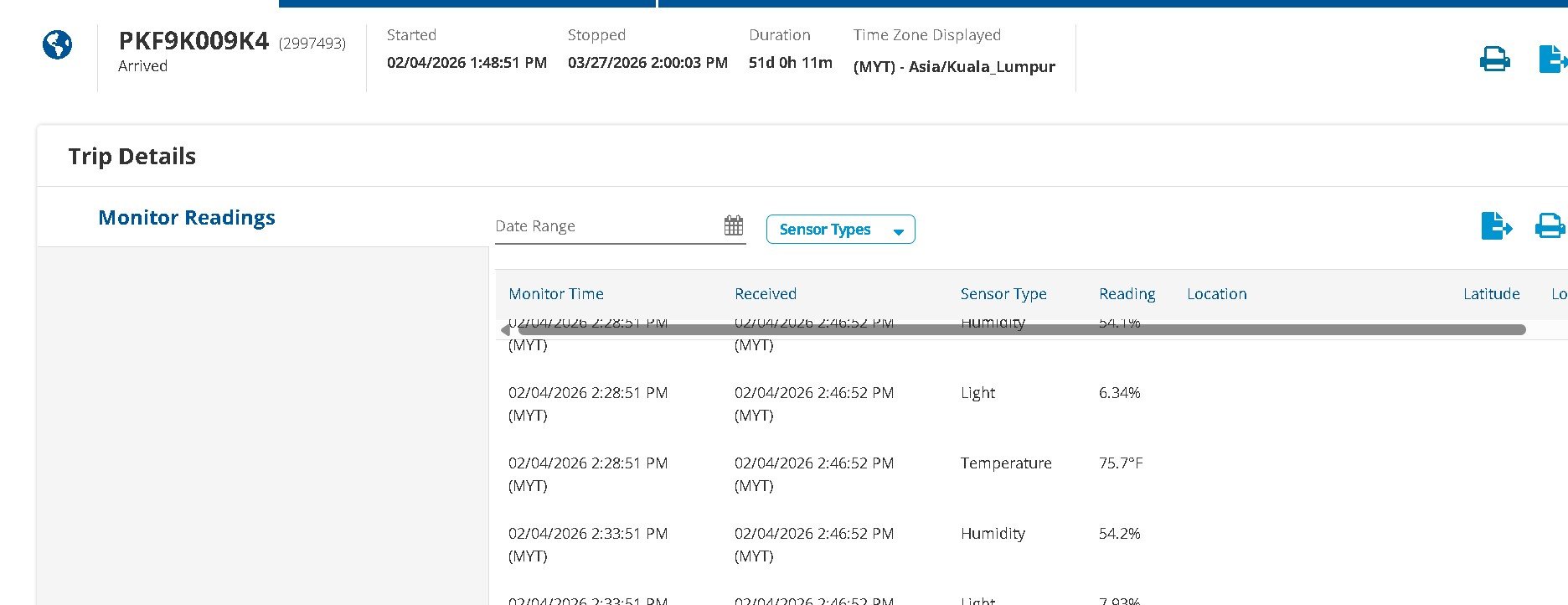

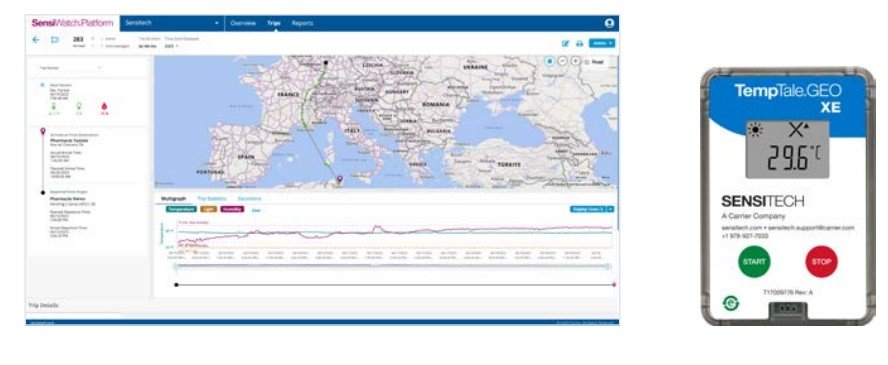

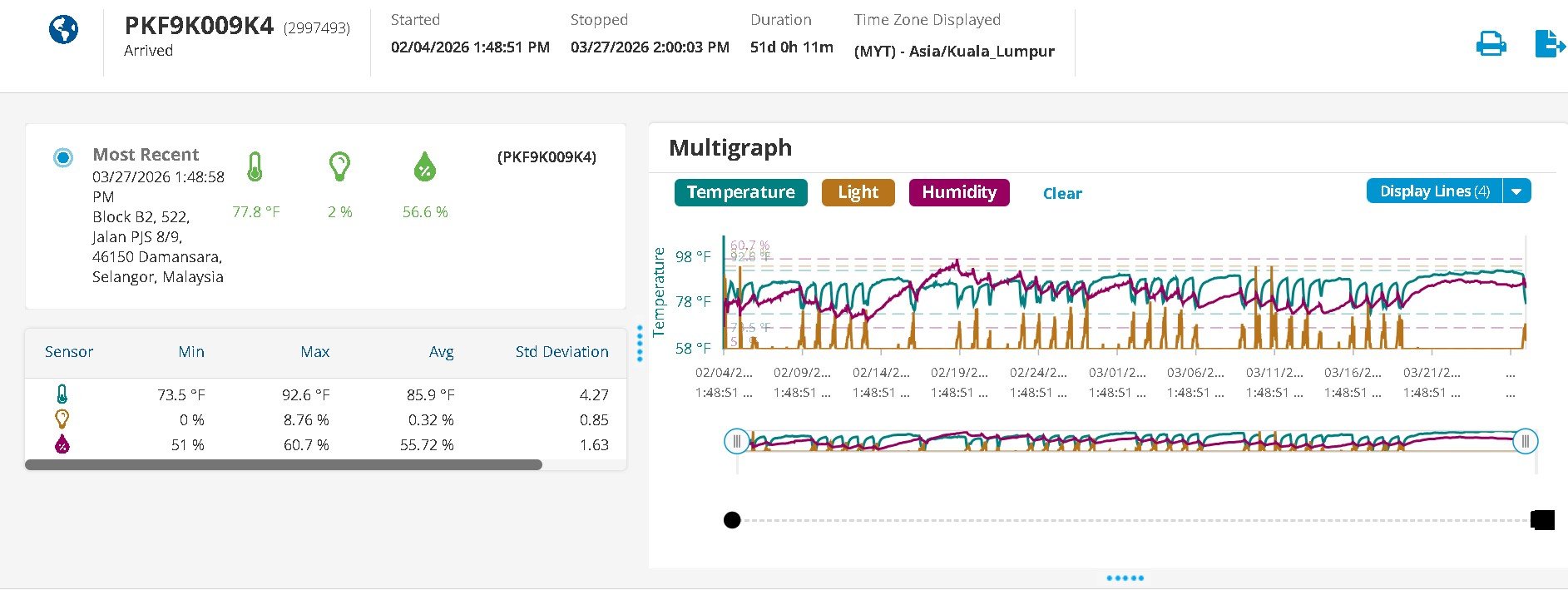

SensiWatch® Platform provides end-to-end visibility and
alerts while in-transit. Take advantage
of real-time data and notifications:
• Delays and missed flights
• Port congestion, extended dwell times
• Proximity of arrival
• Trailer door opened
• Early warning temperature trending beyond limits.

TempTale® GEO XE Specifications
Recording Option
Single Use (for Shippers), Sensitech Manages Multiple Use Device Renewal Program
Certified Modes of Transport
Air, Ocean, Road, Rail (Airline approvals upon request)
Sensor Types
Temperature, Humidity, Light
Temperature Measurement Range
-30°C to +55°C (For colder temps see probed, TempTale GEO XEP to -95°C)
Temperature Accuracy Range
±0.5°C from -10°C to +45°C
±1.0°C from -30°C to -10°C; ±1.0°C from +45°C to +55°C
Humidity Measurement Range
10% to 90% RH, non-condensing
Humidity Accuracy Range
Typical ±3.0% / Max ±5.0% RH from 10% to 90% RH
Alarms
• Up to 6 hardware (Single Temp Limit, Temp Range, Dual Temp Range, MKT, Duration) and up to 12 software
alarms; alarm is triggered when temperature exceeds set limits
• Single-Event (Continuous) or Cumulative
Remote Device Configuration
Simplify order/inventory management by configuring your own hardware alarms and trip length using
ColdStream Select or SensiWatch Platform
Temperature Accuracy Certification
3-point NIST® Traceable per monitor before each use, Certificate of Calibration with order,
by Request or Calibration Portal
Temperature Sensor Sample Interval
Programmable from 5 minutes to 2 hours
Temperature Measurement Responsiveness Meets the requirements of USP <1079.3> and EN12830
Start Up Delay
0 minutes to 24 hours
Light Sensor Range
0-100%
Communication
LTE CAT-M1 (for 4G/5G networks) with 2G fallback
Memory
16,000 data points per sensor
Battery Type
Lithium metal (non-replaceable, < 2 grams lithium) (no IATA dangerous goods label or declaration
if <3 devices in a consignment)
Shelf Life & Sustainability
• 6-month shelf life (press start by use by date, shipper operations simple)
• Sensitech manages renewal of returned devices for reuse. No lost device fees.
Operating Life
Up to 120 days, with communication reporting interval from 15 minutes to 360 minutes; Configurable based
on total days for shipment. (For shorter shipments see TempTale GEO X for up to 60 days)
Dimensions and Weight
91 mm x 61 mm x 31 mm; 121 grams
Environmental Rating
IP64
Regulatory
FCC, CE, IC, RTCA – D016ØG, MIC/GITEKI, 3-Point NIST Traceable Calibration
(each device individually calibrated)
Display Indicators
LCD screen icons: Running, Started, Stopped, Alarm Status, Marked Event, Start-up Delay, Uploading to Cloud,
Upload to Cloud Complete, Final Cloud Upload requires APP, Bluetooth On
Secondary Download
TempTale® Mobile App (iOS 15+—iPhone 7 or higher, Android 12+—Samsung Galaxy S8+ or Note 8+,
Bluetooth Low Energy)
Software Interfaces
SensiWatch® Platform; email notifications; ColdStream® Select 2.2+ (designed to meet FDA 21 CFR Part 11
and EC Annex 11); TempTale® Mobile App 3.1+; TempTale® Manager Desktop 9.1+
Cold Chain PDF Report
Secure PDF generated by cloud software
Minimum System Requirements
Windows 8.1+; Mac OSX 10.12+; Browsers: Google Chrome 83+, Microsoft Edge 83+, Safari 14+;
Adobe® Reader 9.0+
Sensitech has performed all necessary testing and can provide documentation supporting our compliance at your request.
