Achieve Precision and Reliability with a Professional Digital Stroboscope

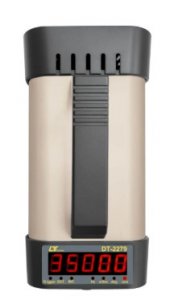

The DT-2279 Digital Stroboscope provides accurate and reliable stroboscopic measurements and external triggering capabilities, making it an essential tool for various industrial applications.

Exceptional Features of the DT-2279:

1. High Intensity Light: Utilizes a Xenon flash tube for high-intensity light, ensuring clear and precise measurements.

2. Wide Frequency Range: Offers a flash adjustment range from 0.833 to 583.3 Hz, with a measurement range of 50 to 35,000 RPM (FPM).

3. External Triggering: Features an external trigger signal input for simultaneous testing and measurement, providing flexibility for various applications.

4. Digital Synthesis Circuit: Ensures high stability and easy adjustment with a digital synthesis circuit.

5. User-Friendly Interface: Equipped with a large red LED display, digital rotary adjustment, and various function buttons for easy operation.

Technical Specifications:

- Display:

  - 14 mm large red LED

  - 5 digits with display unit

- Measurement Range:

  - Flash Adjust: 0.833 to 583.3 Hz

  - RPM: 50 to 35,000 RPM

  - FPM: 50 to 35,000 FPM

- Resolution:

  - 0.001 Hz for <599.9 RPM

  - 0.01 Hz for 600.0 to 5999 RPM

  - 0.1 Hz for ≥6000 RPM

  - 0.1 RPM for <1,000 RPM

  - 1 RPM for 1,000 to 9,999 RPM

  - 10 RPM for ≥10,000 RPM

- Accuracy:

  - ±(0.05% reading + 2 digits)

- Functions:

  - Phase Shift: 0 to 359° with 1° resolution

  - Delay Time: 0 to 1200 mSec from 50 to 10,000 RPM

- External Trigger Signal Input:

  - H Level: 2.5V to 12V

  - L Level: 0.8V max

- Sync Output Signal:

  - 12V level, 100µs square wave

- Power Supply:

  - AC 110V, AC 220V, or AC 230V

- Operating Environment:

  - Temperature: 0 to 50℃

  - Humidity: Max. 80% RH

- Dimensions:

  - 255 x 110 x 150 mm (10 x 4.3 x 5.9 inches)

- Weight: 1200 g (2.64 lb)

Accessories Included:

- Operation Manual: 1 PC

- Power Cord: 1 PC

- Round Metal Connector (SKT-B2279): 1 PC

Advanced Features:

- Metal Housing Case: Durable and long-lasting, designed for professional use.

- Digital Rotary Adjustment: Easy for making fine adjustments to the desired RPM.

- Phase Shift and Delay Time Functions: Enhances measurement capabilities with adjustable phase shift and delay time.

- Quartz Crystal Time Base: Ensures high stability and accuracy.

Invest in the DT-2279 Digital Stroboscope for precise and reliable stroboscopic measurements, ensuring high performance and versatility in various industrial applications.
