About this item

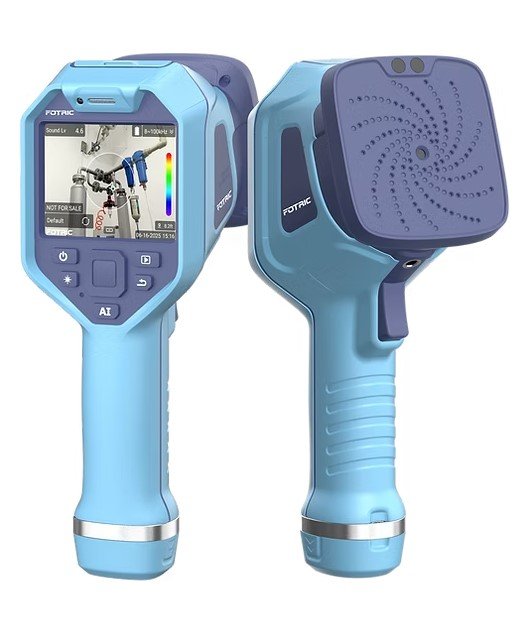

- 【Advanced Acoustic Imaging Technology】Equipped with 64 high-sensitivity MEMS digital microphones and a 66°×52° field of view (FOV) for accurate sound source localization. Covers a wide frequency range from 2 to 100kHz, ideal for detecting both audible and ultrasonic leaks or mechanical anomalies. Also features a 13-megapixel digital camera for detailed visual reference.
- 【Quickly Locate Various Industrial Leaks & Vibration Problems】FOTRIC TD2 acoustic imaging camera enables Compressed Air Leak Detection, Vacuum Leak Identification, Fastener Looseness Checks, and Seal Integrity Verification — all without contact or downtime. Instantly visualize abnormal sound sources in real time to improve maintenance efficiency and prevent costly failures.
- 【Acoustic Image Focus & Sound Pressure Level Measurement】Combines adaptive dynamic noise reduction algorithms to achieve focused localization of sound sources. By combining acoustic images with dB-level data output, it is well-suited for locating and diagnosing a wide range of industrial sound sources.
- 【High-Resolution Touch Screen & Multiple Display Modes】The 3.5" high-resolution IPS touchscreen (640×480), protected by tough Gorilla Glass, supports single-source, multi-source, and hologram modes. Instantly overlay sound pressure data on visible-light images for faster, more intuitive diagnostics.
- 【Portable & Durable Design】Lightweight (770g) and rugged (IP54 rated, 2m drop resistance). FOTRIC TD2 acoustic imager includes a 5000mAh rechargeable battery for 4+ hours of continuous operation, perfect for field inspections in industrial, HVAC, or energy sectors.
| Model | |
|---|---|
| Microphone channel | 64 MEMS digital microphones |
|
Acoustic Image Field of View (FOV) |
66° × 52° |
|
Sound Sampling Rate |
200kHz |
|
Acoustic Refresh Rate |
25Hz |
|
Operating Distance |
0.3~200m(1~626ft） |
|
Frequency Range
|
2~100kHz
|
|
Detection Mode |
Leakage mode: display leakage level on device |
|
Analysis Software
|
AnalyzIR Professional Acoustic Analysis Software |
|
Display Screen
|
3.5-inch, 640 x 480 pixels, IPS LCD touch display with Gorilla Glass explosion-proof cover
|
|
Image Modes
|
Single-source mode, multi-source mode, hologram mode
|
|
Digital Camera
|
13 Megapixels, Industrial-Grade Digital Camera
|
|
Size
|
243mm*95mm*150mm
|
|
Weight
|
770g
|
|
Acoustic Image Focus
|
Masks surrounding areas, focus only on the acoustic image of the focused area |
|
On-device Analysis
|
The device is capable of directly analyzing acoustic images
|
|
Gray Scale Background
|
Display digital camera images in grayscale
|
|
Favorites
|
Click the favorite button to save the favorite status to acoustic images and holographic acoustic videos, highlighted in the gallery preview screen, and later filter by favorite status
|
|
Storage Card
|
TF card, hot-swappable, maximum support 1TB |
| Battery Operating Time |
Actual usage time depends on environmental and usage conditions
|
|
Battery Type
|
3.6V, 5000mAh Rechargeable Lithium Battery, Field-Replaceable
|
|
Supported Languages
|
English, Traditional Chinese, Spanish, Korean, German, Portuguese, Italian, French, Thai
|
|
Standard Configuration
|
Acoustic imaging camera main unit, rechargeable lithium battery * 1, power adapter, USB Type-C to USB cable, 32G TF card, wrist strap, document bag (packing list, quick start guide), outer packaging box |
*Some features might be added or slightly altered according to the region and country
