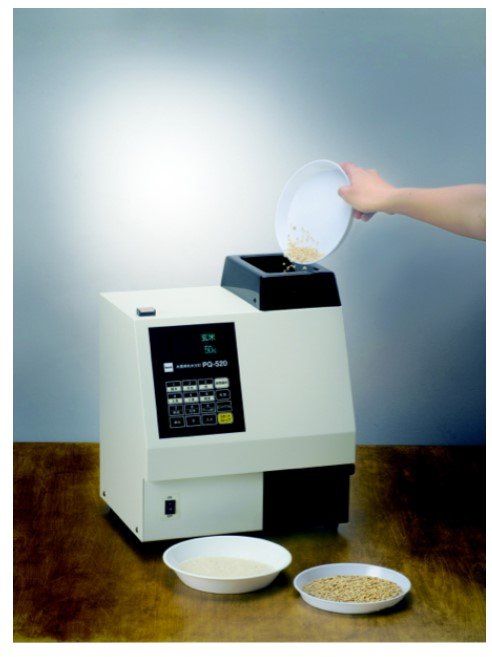

1. Simple to use - select the calibration, pour your sample into the large hopper and press the “Measure” button.
2. Real time results  -  measure the moisture content of individual seeds within a sample.
3. Saves time - tests are completed without sample preparation.
4. Easy set up  - the PQ520 is factory-calibrated for wheat, brown, polished and paddy rice, as well as naked and standard barley.
5. Practical - each kernel is individually tested and the value displayed on the large LCD screen.
6. Versatile - capable of measuring from 10 to 1,000 kernels in each batch and can measure 150 kernels per minute.
7. Detailed - when complete, the number of kernels tested, the average moisture, and a histogram detailing the distribution of moisture values is displayed.

• High-speed continuous moisture measurement of unpolished rice and wheat
• Grasp the moisture distribution of the whole section by measuring a single grain
• Displays the distribution in histograms

Specifications

Measurement Method	Electrical resistance
Applications / Measurement Range	PQ-5203Milled rice: 11-20%, Brown rice: 11-20%, Paddy rice: 11-35%, Barley: 10-40%, Wheat: 10-40%, Naked barley: 10-35%PQ-5205Long milled rice: 11-20%, Short milled rice: 11-20%, Long brown rice: 11-20%, Short brown rice: 11-20%, Long Paddy: 11-35%, Short Paddy: 11-35%, Long parboiled rice: 11-20%, Jasmine milled rice: 11-20%, Jasmine paddy: 11-35%, Barley: 10-40%, Naked barley: 10-35%, Wheat: 10-40%, Long sticky paddy: 11-35%, Long sticky milled rice: 11-20%
Measurement Precision	±0.5% (moisture less than or equal to 20%)
Measurement Time	Less than 40 seconds per 100 kernels (measurement of brown rice, time for display of average moisture value)
Display Format	Fluorescent tube display
Display Content	Selected grain type, average moisture value, kernel count, time, moisture distribution (histogram)
Temperature Correction	Automatic instrument temperature correction using a thermostat
Kernel Count	10-1000 (Selectable)
Operating Range	5-40°C, Lessthan 85% RH (non-condensing)
Output	RS-232C interface (for printer), USB (for PC)
Power Source	AC 100-120V (50/60 Hz) Power cord A AC 200-240V (50/60 Hz) Power cord B
Dimensions & Weight	320(W)X254(D)X382(H)mm, Net 9.0kg
Accessories	Scoop, Tweezers, Power cord A or Power cord B
Options	Printer (VZ-380) Data logger software (PDL-01)
