CIA020 Window Tint Meter Visual Light Transmission 18mm Thickness Continuous Measuring with attached sensor

Its a measuring instrument for measuring light permeability of all transparent and semitransparent materials such as glassplexiglassplasticfoil etc. The Window Tint Meter measures the total amount of VisualLight Transmission (henceforth referred to as VLT) through a window and any coatings (tint film) on that window after it has been treated with aftermarket window film. With the optional RS-232 interface the results of measurement can be transferred to your PC or notebook. It also has an autocalibrationfunction for optimum results of measurement.

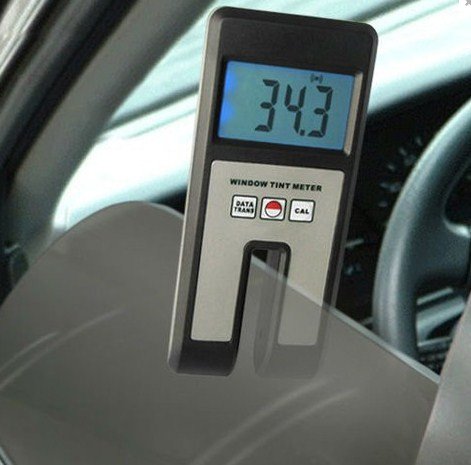

Just slide down over a partially rolled down window and in seconds readings are displayed instantly on the LCD. And because it has its own internal light scource, the meter will work day or night.

Measure the light permeability of a car or vehicle side and rear windows as well as the different glass products like windows and doors. With this equipment it recognizes whether the applied tint film at the back window or at the side windows are efficient. In addition, you'll know if the film applied abides the rules and regulations of the road in your locality. You can also determine the light loss by a plexiglass cover.




Features:

  • Measures both Transparent & Semi-Transparent materials
  • Autocalibration for optimum results
  • Optional RS-232C for connecting to PC/Laptop
  • Accurate & reliable reading results
  • Easy calibration with just a press of a button
  • Easy to use and durable


Specifications:

  • Measurement Range: 0~100% Light Transmission
  • Accuracy: ±0.1%
  • Display: 10mm LCD
  • Wavelength: 550 Nanometers
  • Interface: RS232C (optional, not included in set)
  • Sample Thickness: Less than 10mm/0.4inch
  • Sample Size: 50 x 50mm Minimum
  • Time of Testing: Maximum of 4 Seconds
  • Effects from Stray Light: Not Effected by Stray Light
  • Lamp Life: 10 Years
  • Operating conditions: 0-50°C, <90%RH
  • Power Source: 4 x 1.5V AAA Battery (not included)
  • Size: 126 x 65 x 27mm (5.0 x 2.6 x 1.1inch)
  • Weight (main unit): 129g (batteries not included)

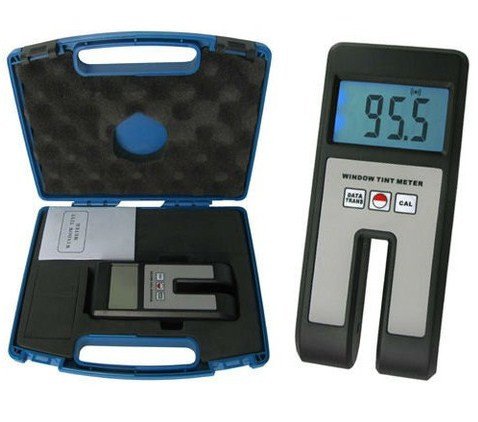

Set Includes:

  • 1 x Windows Tint Meter
  • 1 x Shock Absorbent Carrying Case
  • 1 x Operation Manual
