SEW-Taiwan

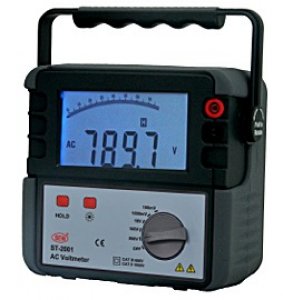

Sew ST-2001 ACV

FEATURES
● Big-size LCD (112 x 59mm)
● Back light function.
● Analog scale with Bar-graph for viewing. (100 bars)
● 10000 counts (high resolution).
● ACV Ranges: 99.99mV~800.0V.
● 5 manual ranges controlled by rotary switch.
● Data Hold function
● Low battery indication
● 9V power supply
● Best resolution of 0.01mV (10uV)
● Precision meter for factory maintenance, field servicing and
   educational purposes.
● Easy to carry handle that doubles as a convenient stand.

  SPECIFICATIONS
AC Voltmeter

Range

Resolution

Accuracy

100.00mV

10uV

50/60Hz : ±(0.3%rdg+5dgt)
40~400Hz : ±(0.5%rdg+6dgt)

1000.0mV

100uV

10.000V

1mV

100.00V

10mV

800.0V

100mV

SPECIFICATIONS
Operating temperature
& humidity
0°C ~ 40°C,
80% Max. R. H.
Storage temperature
& humidity
-10°C ~ 50°C,
80% Max. R. H.
Dimensions
(with holster)
177 (L) x 200 (W) x 105 (D)mm
Weight
(battery included)
Approx. 1190g
Power source 1.5V (AA) x 6
Safety standard EN 61010-1
EN 61326-1
