Fluke 1743, 1744, and 1745 Three-Phase Power Quality Loggers Memobox

The Fluke 1740 Series three-phase power quality loggers are everyday power meters for technicians who troubleshoot and analyze power quality issues. Capable of simultaneously logging up to 500 power parameters for up to 85 days and monitoring for events, these power loggers help uncover intermittent and hard-to-find power quality issues. The included PQ Log software quickly assesses the quality of power at the service entrance, substation, or at the load, according to the latest EN50160 standard.

Loggers for every application

The portable Fluke 1740 Series power quality loggers are designed for easy installation and use, anywhere in low- and medium-voltage applications. There are three models to choose from to meet your basic or advanced power logging needs.

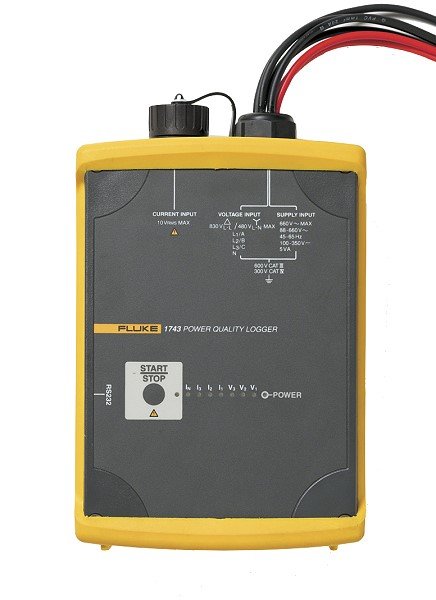

Fluke 1743: IP65 water-proof monitor for logging the most common power parameters including V, A, W, VA, VAR, PF, energy, flicker, voltage events, and THD.

Fluke 1744: Includes the same features as the Fluke 1743. In addition to common power parameters, the Fluke 1744 also measures voltage and current harmonics, interharmonics, mains signaling, unbalance, and frequency.

Fluke 1745: Advanced IP50 power quality logger with the same measurement capability as the 1744, plus real-time LCD, five hour UPS.

  Fluke 1743 Fluke 1744 Fluke 1745
Measurement of common power parameters: V, A, W, VA, VAR, PF, energy, flicker, voltage events, and THD
Measurement of voltage and current harmonics to the 50th, unbalance, and mains signaling
Dust/water resistance IP65 Water Proof IP65 Water Proof IP50
Display LED LED LED + LCD
UPS ride-through 3s 3s 5 hrs
